    High-speed Plastic PP Zipper LDPE PE Ziploc Strip Extruding Machine

    Ask Lasest Price
    Brand Name : RUITAI
    Model Number : RT-45
    Certification : CE ISO9001
    Price : $9,800.00 - $11,000.00/ Set
    Payment Terms : T/T
    Supply Ability : 10 SETS/MONTH
    Delivery Time : 15 DAYS
    • Product Details
    • Company Profile

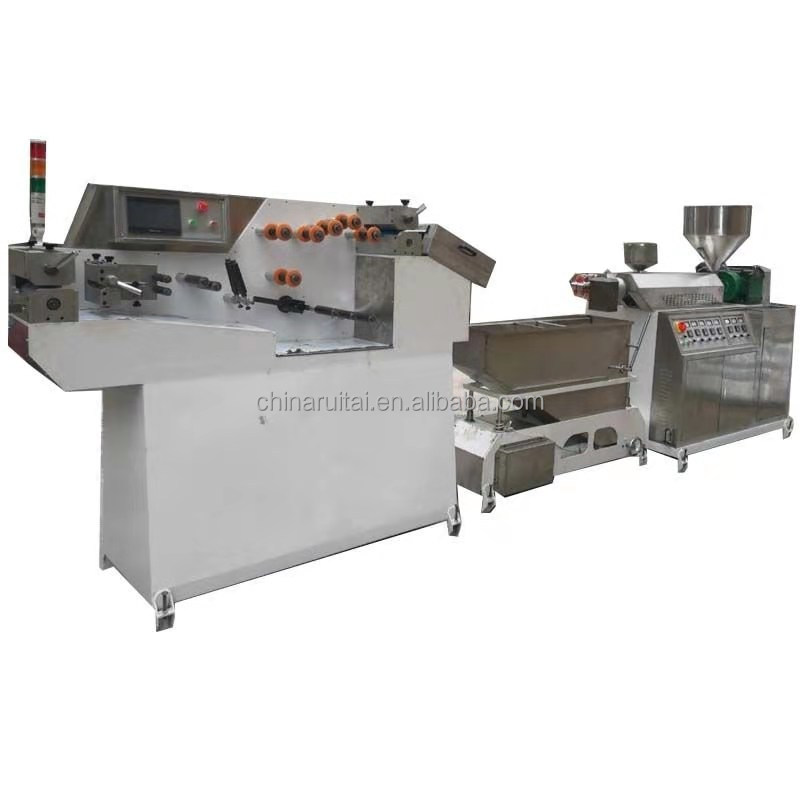

    High-speed Plastic PP Zipper LDPE PE Ziploc Strip Extruding Machine

    High-speed Plastic PP Zipper LDPE PE Ziploc Strip Extruding Machine

    Use:

    This machine is suitable for PE zipper strip widely used for packing bag sealing and jointing of food, clothes and textile industrial products.

    1. The extruder’s screw and screw barrel adopt special treatment, with the best hardness and corrosion resistance

    2. This machine can change the mould very easily for different zipper strip production.

    3. The raw material is extruded from the mould, though the thermostat cooling batch, dehydration device, air drying device, zipper strip close device, automatically meter/width/quantity counting, automatic winding device. into the finished product with high quality.

    4. This machine’s mould with flexible, easy loading and unloading feature, easy to operate.

    Main Configuration of the Machine

    MotorMain motor5.5KW(Kuayao brand, made in Shanghai)
    Auxiliary machine0.4kw
    Gear Reducer

    Speed Ratio:10:1,

    Guomao Brand, made in jiangshu

    InverterMain motor5.5kw
    Auxiliary machine1.5kw
    ScrewMade in Zhoushan
    Temperature controllerZhineng Brand, made in Jiangshu
    OthersMade in China

    Main Technical Variable

    ModelRT-45
    Screw diameter45mm
    Screw L/D30:1
    Main motor5.5KW
    Auxiliary machine power1.5KW
    Heating power7KW
    Total Power15KW
    Over size6800 x 4200 x 1800mm
    Power50HZ-60HZ 380v
    Suitable materialLDPE
    Extruding speed20-60m/min
    Extruding width3-100mm
    Zipper strip thickness0.1-0.3mm
